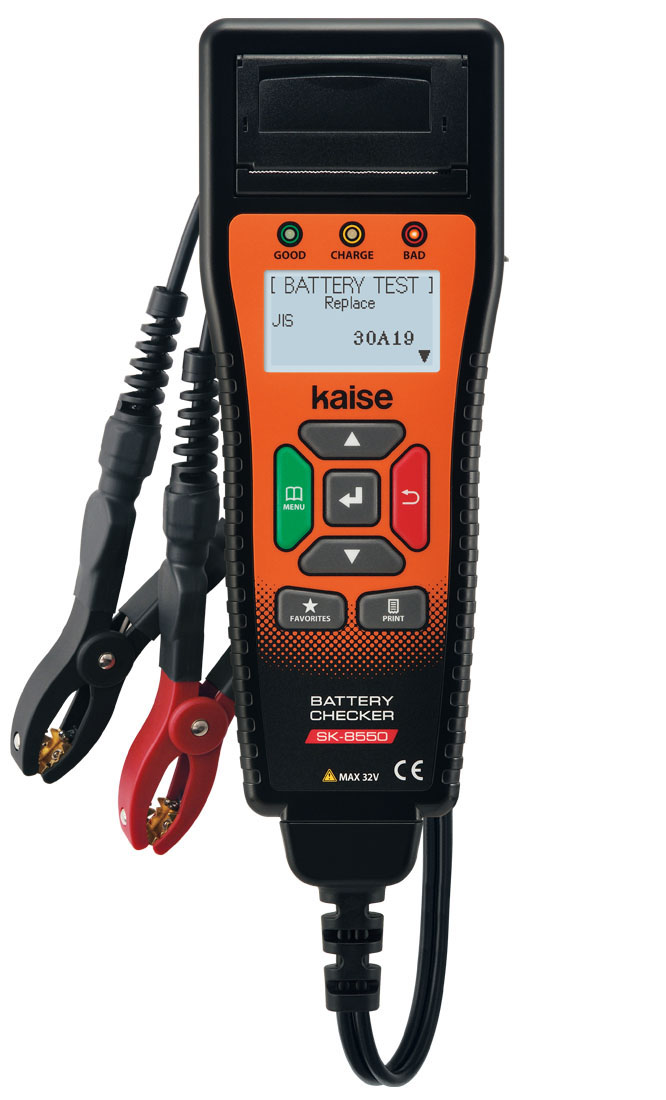

Battery Checker

New and Improved Battery Checker with Advanced Functions.

Discontinued

succeeding model : SK-8551

*For the user name and password to log in, refer to page 32 of the instruction manual supplied with the product.

Total condition check for 12V (24V) batteries. (Truck, Marine, Industry etc.)

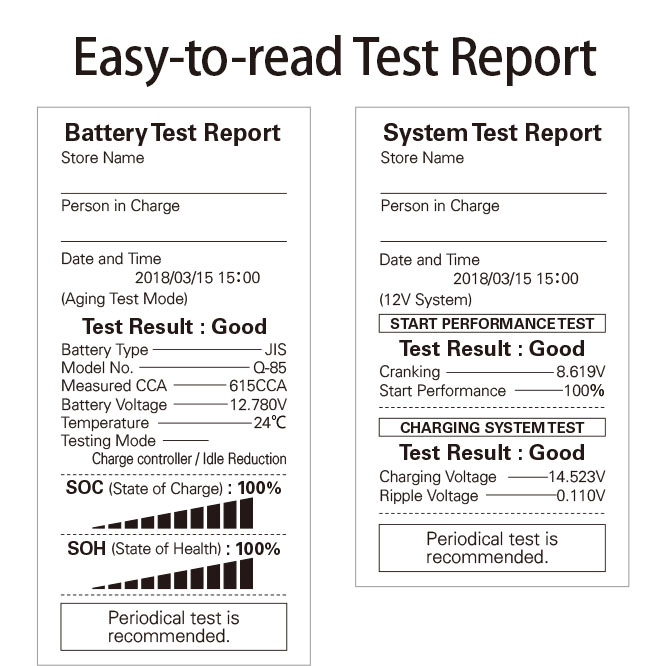

Battery check, Engine start performance, Charging system tests.
Testing Batteries: All types of 12V Lead Acid Batteries.
(VRLA/GEL/EFB/AGM/SPIRAL/MF/Charge Controller battery/Idle Reduction battery(ISS)/Hybrid Auxiliary battery etc.)
*Cannot test Nickel-hydrogen battery.

For the automotive batteries with EN/DIN, SAE/BCI, and JIS standards.
Applicable to the vehicles with Charge Controller or Idle Reduction systems.
Auxiliary battery test for TOYOTA-Hybrids.

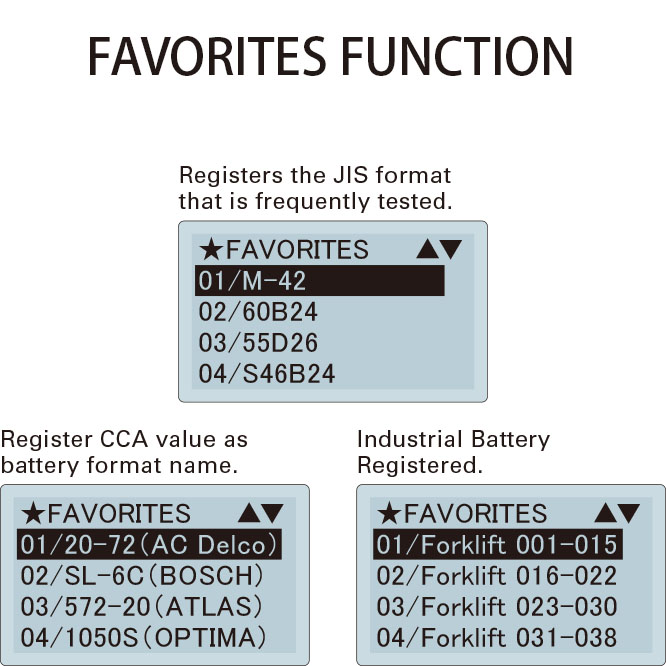

Can record frequently tested batteries as favorites list.
Can count and record the number of testing.
One-touch printing by Dierct-Print Key available on the instrument.

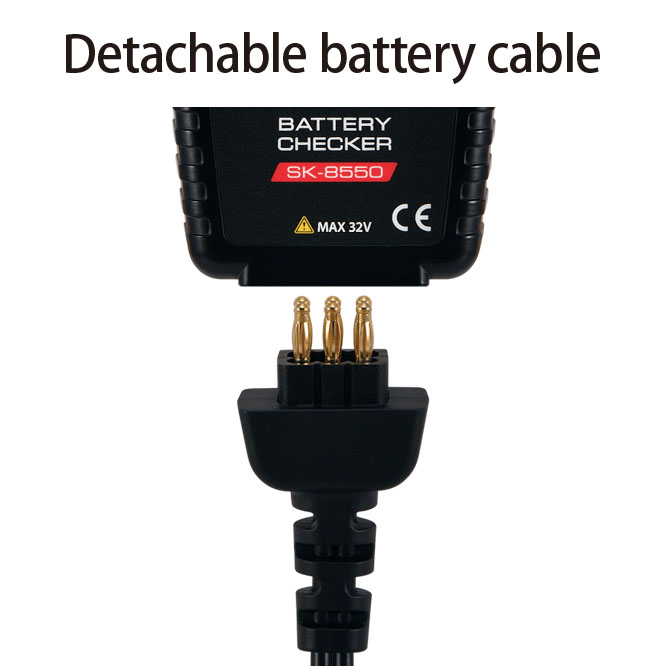

Detachable battery cable for easy replacement.

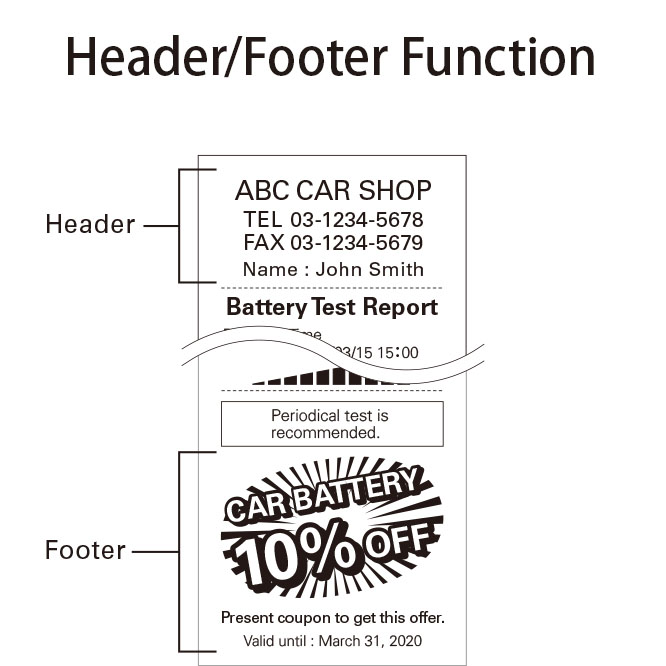

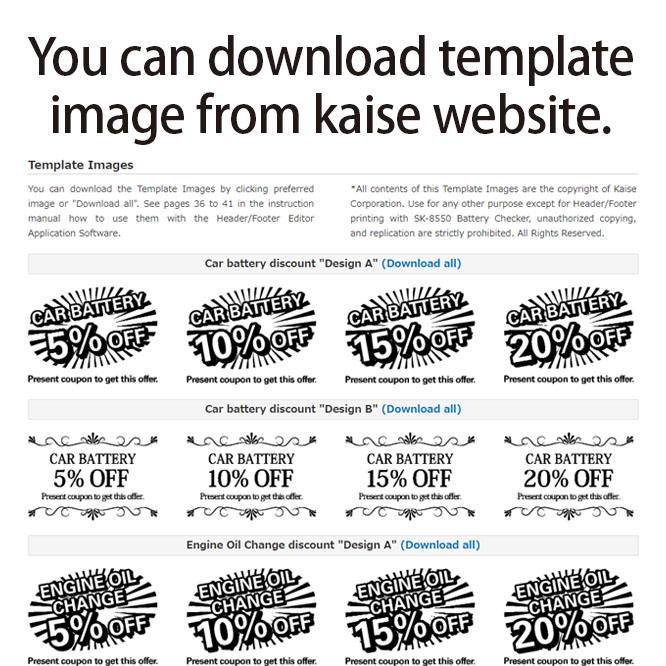

Editable header / footer function that can print favorite names or pictures (shop name, etc.) on the printer paper.
Double Dierential Pulse Test Method for more accurate testing.
Unused Battery Test Mode.

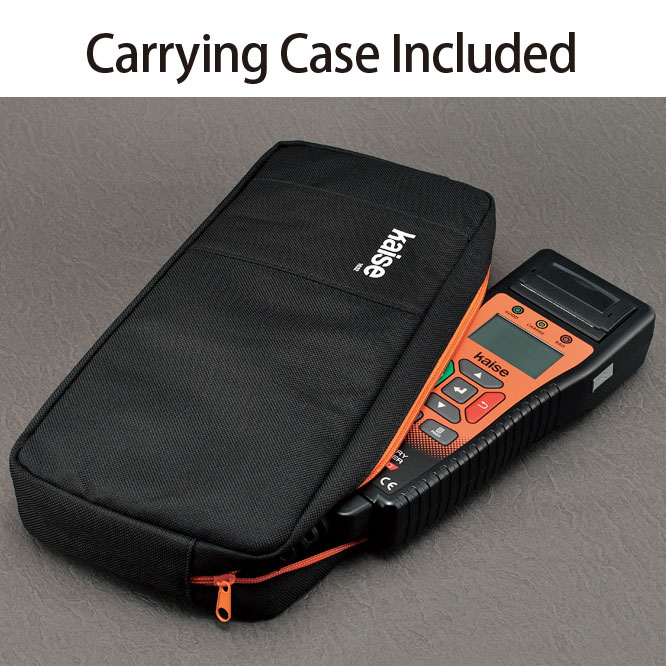

Carrying Case for Protection.

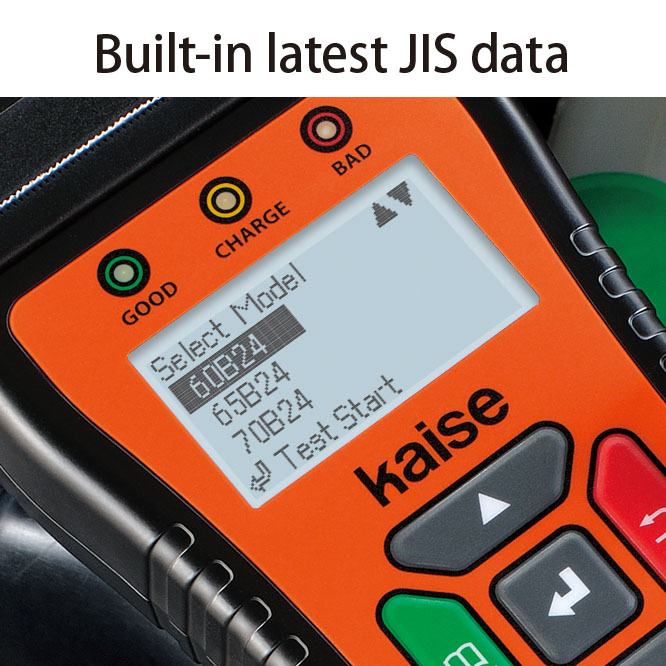

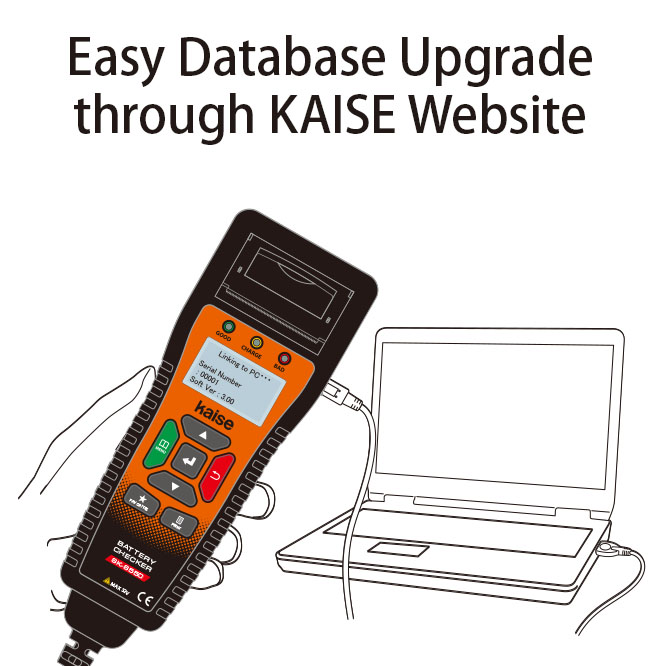

Easy Database Upgrade through KAISE Website.

Display (LCD) :
LCD (dot matrix display :128×64 dots)
Language (display & print) :
Japanese, English, (Default setting : English)

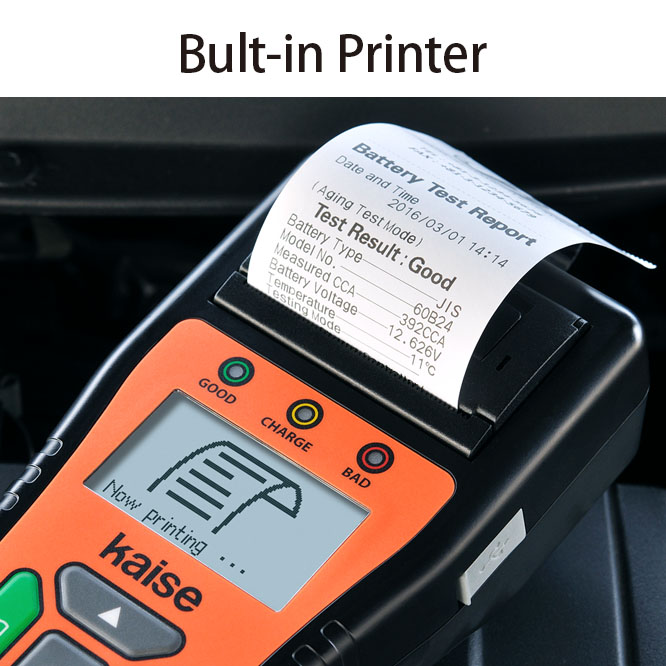

Printer :
Bult-in Printer
Power Supply :

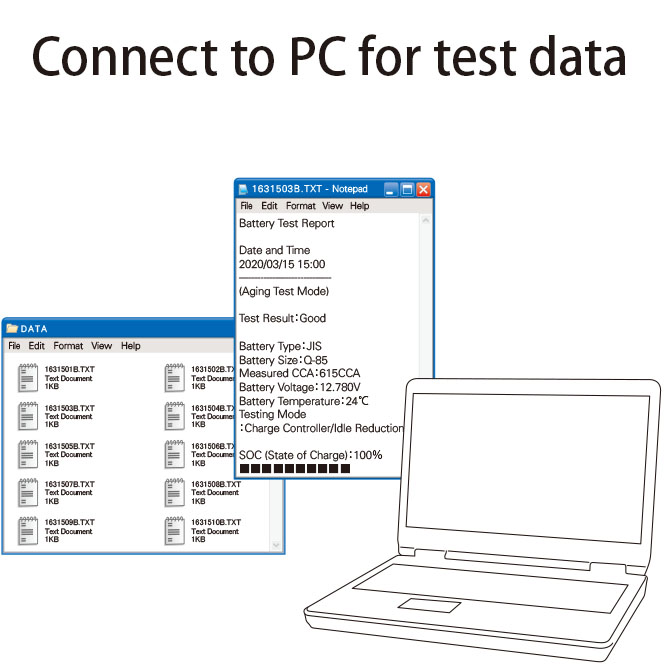

From Test Battery or USB connection
Testable Battery :
12V Battery
*24V battery : engine startability test and charging system test are available.
Battery Standard :
JIS, EN / DIN, SAE / BCI
*CCA input or Industrial battery selectable.
Measurement Range :
100 to 1400CCA, Industrial :1.0mΩ to 50.0mΩ
CE Mark :
EN61326-1
Dimensions & Weight :
248(H) x 96(W) x 55(D)mm, Approx. 670g

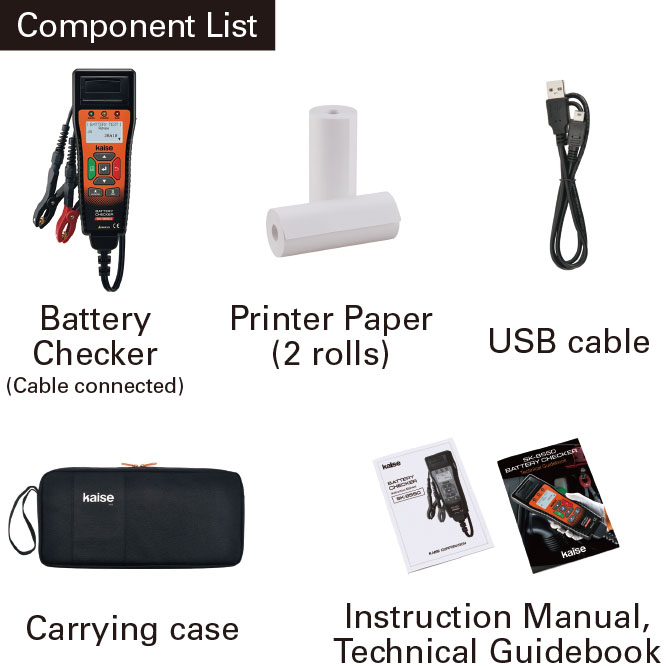

Accessories :
800 Battery Cable, 937 USB Cable, Printer Paper (x 2, for testing sample), 1032 Carrying Case, Instruction Manual, Technical Guide Book

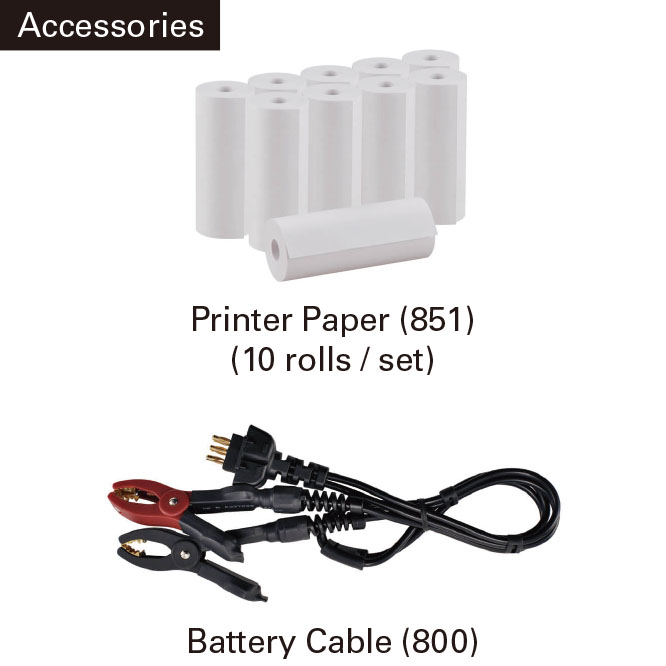

Optional Accessories :
851 Printer Paper (10 rolls / set, 57(W) x 5800(L)mm), 800 Battery Cable
